新光塑料有限公司

尼龙扎线带概述

材质：采用UL认可之尼龙66料制成，防火等级94V-2，耐酸、耐蚀、绝缘性良好，不易老化、承受力强。

颜色：标准颜色为本色（白色），另有抗外紫外线之黑色，特殊颜色欢迎订做。

Material:Nylon 66,94V-2,certificated by UL,Heat-resisting,erosion control,insulatewell and not apt t age.

Color:Natural(or white,standard color),UV black and other colors are available as requested.

上一个下一个返回

基本参数

材质：采用UL认可之尼龙66料制成，防火等级94V-2，耐酸、耐蚀、绝缘性良好，不易老化、承受力强。

颜色：标准颜色为本色（白色），另有抗外紫外线之黑色，特殊颜色欢迎订做。
Material:Nylon 66,94V-2,certificated by UL,Heat-resisting,erosion control,insulatewell and not apt t age.
Color:Natural(or white,standard color),UV black and other colors are available as requested.

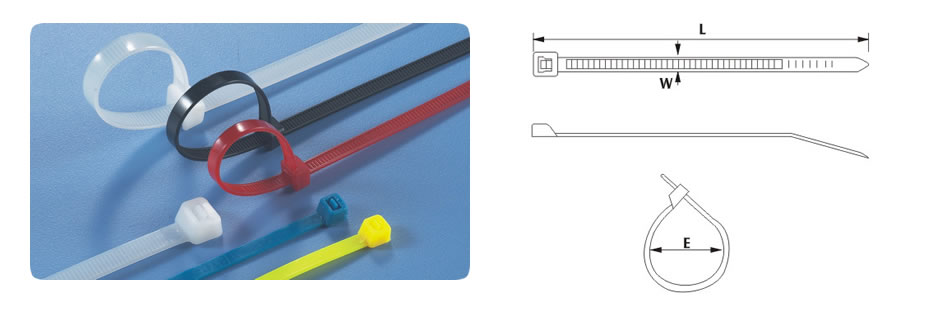

型号规格

型号 ITEM NO	长L		宽 W MM	捆扎范围E BUNDLE DIAMETER MM	承受力 TENSILE STRENGTH
型号 ITEM NO	INCH	MM	宽 W MM	捆扎范围E BUNDLE DIAMETER MM	LBS	KGS
XINGO-2.2×60 XINGO-2.5×80 XINGO-2.5×100 XINGO-2.5×120 XINGO-2.5×150 XINGO-2.5×160 XINGO-2.5×200	2.4″ 3.2″ 4.0″ 4.7″ 6.0″ 6.3″ 8.0″	60 80 100 120 150 160 200	2.5	2-11 2-16 2-22 2-30 2-35 2-40 2-50	18	8
XINGO-3.6×100 XINGO-3.6×120 XINGO-3.6×150 XINGO-3.6×180 XINGO-3.6×200 XINGO-3.6×250 XINGO-3.6×300 XINGO-3.6×370	4.0″ 4.7″ 6.0″ 7.1″ 8.0″ 10″ 12″ 14.6″	100 120 150 180 200 250 300 370	3.6	3-22 3-30 3-35 3-42 3-65 3-70 3-80 3-85	40	18
XINGO-4.8×100 XINGO-4.8×120 XINGO-4.8×150 XINGO-4.8×180 XINGO-4.8×200 XINGO-4.8×250 XINGO-4.8×300 XINGO-4.8×370 XINGO-4.8×400 XINGO-4.8×450 XINGO-4.8×500 XINGO-4.8×650 XINGO-4.8×760	4.0″ 4.7″ 6.0″ 7.1″ 8.0″ 10″ 12″ 14.6″ 16″ 18″ 20″ 25.6″ 30″	100 120 150 180 200 250 300 370 400 450 500 650 760	4.8	4-22 4-30 4-35 4-50 4-50 4-65 4-80 4-85 4-105 4-118 4-150 4-185 4-200	50	22
XINGO-7.6×200	8.0″	200	7.6	5-50	120	55
XINGO-7.6×250	10″	250	7.6	5-65
XINGO-7.6×300	12″	300	7.2	5-80
XINGO-7.6×350	14″	350	7.6	5-82
XINGO-7.6×370	14.5″	370	7.6	5-85
XINGO-7.6×400 XINGO-7.6×450 XINGO-7.6×500 XINGO-7.6×550	16″ 18″ 20″ 21.6″	400 450 500 550	7.6	5-105 5-118 5-150 5-160
XINGO-8.8×400 XINGO-8.8×450 XINGO-8.8×500 XINGO-8.8×550 XINGO-8.8×600 XINGO-8.8×650 XINGO-8.8×700 XINGO-8.8×760 XINGO-8.8×800 XINGO-8.8×900 XINGO-8.8×1000	16″ 18″ 20″ 21.6″ 23.6″ 25.6″ 27.6″ 30″ 31.5″ 35.5″ 39.4″	400 450 500 550 600 650 700 750 800 900 1000	8.8	6-105 6-118 6-105 6-160 6-170 6-185 6-190 6-200 6-230 6-265 6-300	170	75
XINGO-8.8×1200	47.3″	1200	8.8	7-330	175	79.4
XINGO-8.8×1500	47.3″	1200	8.8	7-330	175	79.4
XINGO-12×600 XINGO-12×650	24″ 26″	600 650	12 12	6-170 6-165	180 180	83 83
